How Much Weight Can a 16-Foot Box Truck Carry?

Standing at a loading dock while pallets stack up faster than expected is when this question suddenly matters. The truck looks big. The box is long. Everyone assumes it can handle “one more load.”

That’s how operators, fleet managers, and even rental customers end up asking the same thing too late: how much weight can a 16 foot box truck carry before something breaks, fails inspection, or gets pulled over.

Let’s break down the real numbers behind 16 ft box truck weight, payload capacity, liftgates, and why truck size alone is the worst way to judge what a box truck can handle.

How much weight can a 16-foot box truck actually carry?

Here’s the straight answer most people never get upfront:
A typical 16-foot box truck can carry between 5,000 and 7,500 lbs of payload.

Many rental-spec 16-foot trucks sit at the lower end of that range — some cap out around 4,300–5,500 lbs of legal payload — so don’t assume 7,000+ lbs unless you’ve checked the door sticker and curb weight.That range depends on:

• Chassis rating

• Empty truck weight

• Upfit configuration

• Whether the truck has a liftgate

Many commercial 16-foot box trucks fall under Class 4–5 heavy duty, especially fleet and business use; rental-oriented units often sit around 12,500–14,500 lbs GVWR Class 3–4. That GVWR is the legal weight limit — not a suggestion.

Once you subtract the 16ft box truck weight empty (cab + chassis + box + fuel + driver), what’s left is your true payload capacity.

Typical numbers look like this:

• Empty truck: 9,500–11,000 lbs

• Legal payload: 5,000–7,500 lbs

And no — making the box longer does not magically increase payload. That misconception shows up constantly in moving trucks, municipal fleets, and rental company returns.

If you want a broader context on box lengths, GVWR, and how 16-foot trucks compare to 20- and 26-foot units, this pairs well with
Box Truck Buyer’s Guide: Dimensions, Specs, Costs & Liftgates (2025) — especially if you’re choosing truck size based on application instead of guesswork.

Why liftgates change everything on a 16 ft box truck

This is where most specs quietly go sideways.

A 16 ft box truck with liftgate loses payload the moment the gate is installed. Depending on the style:

• Steel tuck-under: ~1,800–2,000 lbs

• Aluminum railgate: ~1,200–1,600 lbs

Here’s a real scenario I see constantly:

• 16-ft box truck GVWR: 17,500 lbs

• Empty truck: 10,500 lbs

• Liftgate installed: 1,500 lbs

That leaves 5,500 lbs of usable payload — before tools, shelving, dollies, or bulkhead protection.

For fleets doing frequent loading and unloading, the liftgate is non-negotiable. But pretending it doesn’t affect payload is how brakes wear early, suspensions sag, and warranty conversations get uncomfortable.

Rental customers feel this too. A truck booked online for a 24 hours or 48 hours window often comes back overweight because no one explained the math at pickup. Add tight city or zip code routes, curbside loading, and uneven pavement, and you’re stacking risk on top of risk.

If liftgates are part of your operation, the deeper breakdown lives in
Box Truck Lift Gate Buyer’s Guide 2025: Specs, Costs & Truck Body Fit — especially useful for fleets choosing between tuck-unders vs railgates.

16-foot box truck payload comparison (real-world numbers)

Here’s a clean way to visualize how specs change capacity:

This is why operators upgrading from a 16-footer to a 26,000 lbs GVWR truck are often shocked at how much more forgiving the heavier chassis feels. It’s not about length — it’s about axle ratings and margin.

Municipal fleets, utilities, and contractors hauling dense materials hit this limit fast. Moving companies hauling lighter goods often don’t — until someone loads incorrectly or misjudges weight distribution.

If you want a deeper dive on how GVWR and payload interact across types of vehicles, this connects directly to
Box Trucks Weight: Limits, GVW & Capacity, which expands beyond just 16-foot units.

Rental trucks, CDL requirements, and driver licensing reality

This part matters more than people admit.

Most 16-foot box trucks stay below CDL requirements, which is why rental companies love them. No commercial driver s license required in most states, just standard driver licensing.

But here’s the catch:

• CDL rules are based on GVWR, not actual load

• Overloading still triggers DOT violations

• Rental contracts don’t protect you from weight tickets

A driver doesn’t need a commercial driver’s license to drive the truck — but enforcement doesn’t care if it’s rented, owned, or borrowed. Overweight is overweight.

This is also where rental rate, return location rules, and fine print matter. Miss the date and time on a return, bring the truck back damaged, or overload it, and suddenly that “cheap” rental isn’t cheap.

If you’ve ever seen a rental counter sign that says “please call” for details, this is usually why. The details live in the weight math.

What fleets and operators should do before loading or ordering

If you only remember one checklist, make it this:

1. Ask for curb weight with every option installed

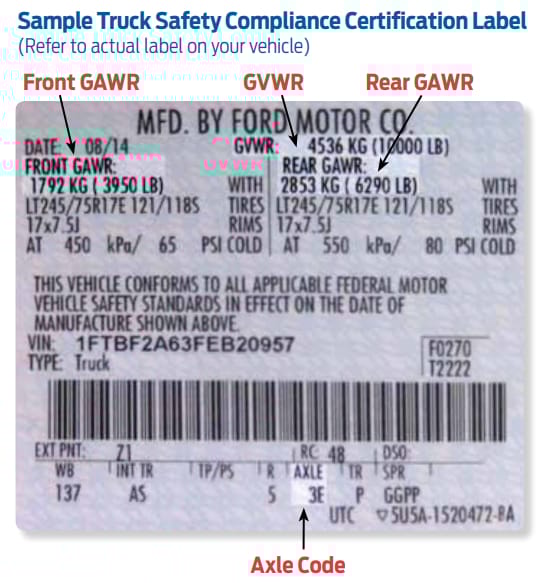

2. Subtract from door-sticker GVWR, not brochure claims

3. Account for tools, racks, fuel, and driver weight

4. Leave a 10–15% buffer for real-world abuse

This applies whether you’re:

• Buying a new fleet unit

• Upfitting a used truck

• Renting a 16-footer for a short job

It’s also why “budget” specs backfire. 16ft budget truck dimensions look fine on paper, but lighter frames, thinner floors, and minimal axle margin show up later as downtime and repairs.

Founding Members get access to calculators and spec playbooks that remove the guessing entirely.

FAQ

How much does a 16 ft box truck weigh empty?
Most empty 16-foot box trucks weigh between 9,500 and 11,000 lbs, depending on chassis, box construction, and options.

Does a 16 ft box truck with liftgate carry less weight?
Yes. A liftgate typically reduces payload by 1,200–2,000 lbs, depending on type and material.

Are 16-foot box trucks CDL vehicles?
Most are non-CDL, but overloading can still result in fines and violations.

Is truck size the same as payload capacity?
No. Truck size affects volume, not legal weight limits.

Can rental companies charge for overloading damage?
Yes. Damage from overloading is typically excluded from coverage.

Is a 26,000 lbs truck safer for heavy loads?
Often yes. Higher GVWR provides more margin and durability.

Wrap-Up

Payload mistakes don’t announce themselves. They show up as early brake jobs, sagging suspensions, denied warranties, and tickets no one budgeted for.
