Mechanic Truck Guide: Build, Spec & Maintain the Right Way

A high-performing mechanic truck isn’t chosen from a catalog.
It’s engineered through precision, field experience, and a clear understanding of operational demands.

When a truck bends a frame mid-lift or burns through a hydraulic system, it’s rarely “bad luck.”
It’s a preventable outcome — the result of weak specs or poor integration between components.

This guide walks through how to design, operate, and sustain a mechanic truck that delivers long-term reliability, stability, and uptime — on and off the job site.

THE $20K MISTAKE LURKING IN YOUR MECHANIC TRUCK

Common statement from a fleet manager who tried to save a few thousand dollars.
Six months later, the “savings” cost him a five-figure repair.

Here’s another:

Mechanic trucks aren’t just about lift capacity.
They’re about structure, stability, and proper load distribution.

Overlooking one detail — a mount, a spread, a reinforcement — can turn a $130,000 investment into a rolling liability.

MECHANIC TRUCK STRUCTURE 101

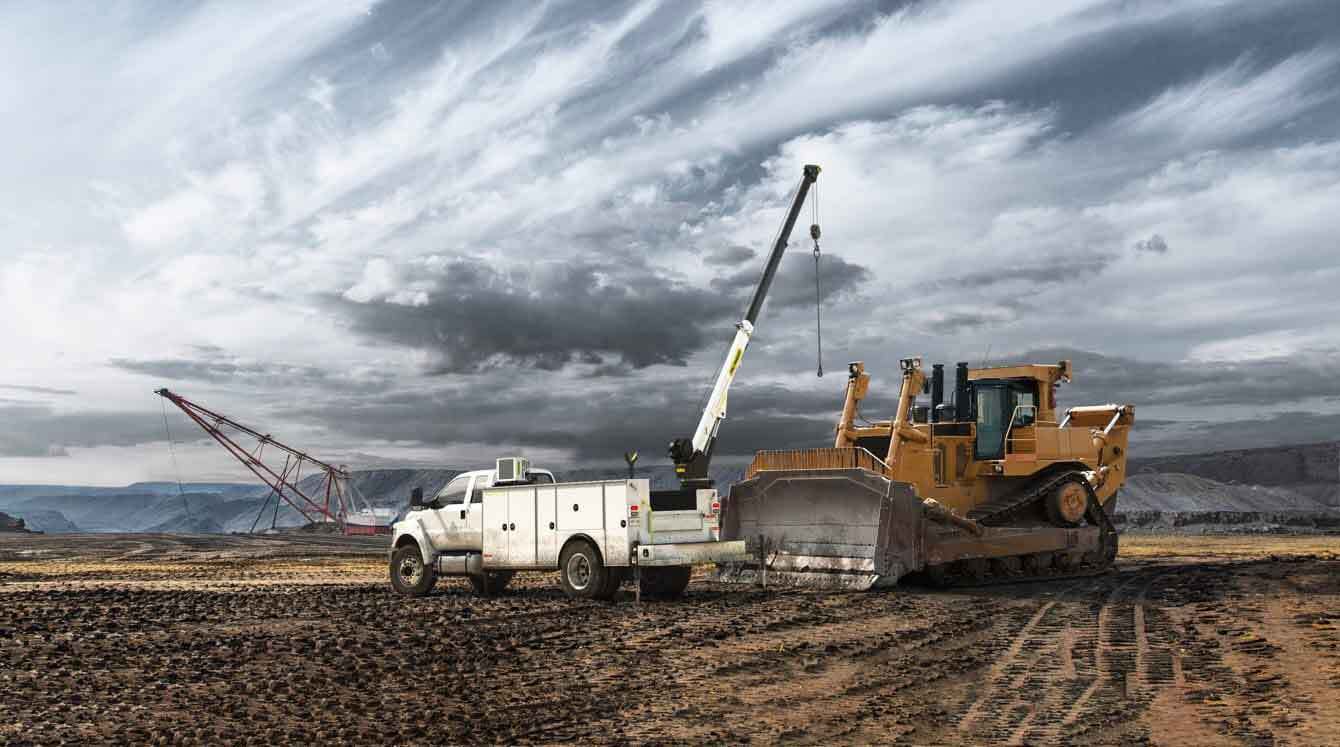

Many still view a mechanic service truck as a glorified toolbox.
But the reality? It’s a high-torque mobile workstation that endures dynamic loads daily.

Every weld, subframe connection, and outrigger mount must perform under extreme stress.
A well-engineered service truck absorbs this stress, distributing energy through the chassis rather than the crane or body structure.

A properly spec’d unit should handle daily field repairs, roadside emergencies, and job site lifts without torsional flex or hydraulic strain.

If you missed it, read 7 Spec Mistakes That Cost Fleets Thousands (And How to Avoid Them) — it outlines how incomplete specs quietly erode uptime and profit margins.

The Three Critical Load Points That Fail First

1. Frame Rails: Without reinforcement, side pulls create torsional twist that permanently weakens the chassis.

2. Subframe Mounts: Insufficient subframe support leads to cracked welds and sheared bolts under rotational load.

3. Outriggers: Incorrect spacing or undersized components cause flex, fractures, and potential tip-overs.

These stress points often go unnoticed during installation — until failure occurs under field load.

HOW TO SPEC YOUR MECHANIC TRUCK RIGHT

Your spec sheet isn’t just a checklist.
It’s the blueprint that determines whether your truck delivers five years of uptime or two years of repairs.

Before approving your next build, confirm these critical parameters.

1. Crane Capacity vs. Chassis Integrity

A 10,000-lb crane demands a Class 5–7 chassis capable of sustaining both vertical and side load torque.
The question isn’t simply “Can it lift?” — it’s “Can the chassis absorb the stress of repeated lifts over time?”

• Longer wheelbase enhances balance and weight distribution.

• Reinforced frame rails reduce torsional deflection.

• Proper subframe spread minimizes concentrated stress.

💡 Pro Insight: Always spec your chassis at least 10% above your crane’s maximum lift capacity. That margin absorbs unexpected load surges and protects structural integrity.

For a deeper dive into chassis alignment and torque management, see Stop $12K in Rework: The 2025 Spec Fail Checklist for Fleet Pros.

2. Subframe Reinforcement

The subframe is the unsung hero of every mechanic truck build.
When neglected, it’s also the most common failure point.

Cranes exert tremendous twisting forces during side lifts, especially on uneven job sites.
If that energy isn’t dispersed evenly across the subframe, the result is a warped frame or broken welds.

Use torsion box structures or full-length inserts instead of simple bolt-on plates.
Their distributed design spreads torque evenly across both rails, maintaining alignment and strength under load.

This isn’t about adding bulk — it’s about channeling force efficiently.

3. Outrigger Configuration

Outriggers are the foundation of every safe lift.
Without proper design, even the strongest crane becomes unstable.

• Hydraulic outriggers outperform manual systems for speed, safety, and consistency.

• A wider spread stabilizes side loads and protects against overturning.

• Reinforced outrigger mounts prevent localized frame crush.

If your crane exceeds 6,000 lbs of capacity, hydraulic outriggers aren’t optional — they’re mandatory for OSHA compliance and real-world stability on rough job sites.

4. PTO and Hydraulic Integration

Your PTO isn’t just another component — it’s the power backbone of your system.
It drives the crane, air compressor, and auxiliary systems that make or break job site productivity.

• Match PTO flow rate to the crane’s peak hydraulic demand.

• Opt for split-shaft PTOs for heavy-duty duty cycles — clutch pumps fail fast.

• Calibrate your system with OEM idle-up and load-sensing interlocks.

A misaligned PTO burns out under load, causing both downtime and costly replacements.

5. Truck Body Engineering

Your truck body does more than store tools — it stabilizes and reinforces the crane structure.

• Steel: Superior strength under torque; ideal for high-capacity cranes.

• Aluminum: Lighter and corrosion-resistant but more flexible under torsion.

• Hybrid builds: Steel base with aluminum compartments — the modern balance between rigidity and corrosion control.

Always specify galvanneal steel or e-coat finishes for fleets operating in salt or winter conditions.
For corrosion strategy examples, review the Snowplow Prep 2025: Why Setups Fail (And How to Prevent Them)— it exposes how neglecting protection costs fleets thousands in body replacements.

UPGRADE COMPONENTS THAT PAY FOR THEMSELVES

Top fleets treat spec decisions as long-term investments, not short-term cost savings.
These upgrades consistently reduce downtime and extend service life:

1. Full-Length Frame Inserts — equalize crane torque and minimize stress points.

2. Auto-Stow Boom Systems — reduce operator error during travel prep.

3. E-Coat Corrosion Protection — adds up to a decade of frame longevity.

4. LED Compartment Lighting — boosts visibility and lowers current draw.

5. Backup Battery + E-Stop Systems — essential for safe hydraulic recovery.

COMMON FAILURES (AND HOW TO PREVENT THEM)

❌ Short body + long crane → Frame bending
❌ Weak subframe design → Cracked welds
❌ Underrated outriggers → Lateral instability
❌ Clutch pump PTOs → Thermal failure
❌ Uncoated steel → Rapid corrosion in 3 winters

Ask Your Builder:

• What’s the crane’s torque-to-frame ratio?

• Are outriggers properly rated and reinforced?

• Is the body fully e-coated or galvannealed?

• Will this upfit withstand a full OSHA lift audit?

Do This Instead:

• Increase wheelbase length by 10% for load balance.

• Reinforce every crane mount point.

• Always spec hydraulic outriggers on Class 5+ builds.

• Post load charts in every operator cab and train quarterly.

MAINTENANCE MADE SIMPLE

Routine inspection transforms reliability.
Even a perfectly spec’d mechanic truck deteriorates without consistent upkeep.

Weekly:

• Check outrigger pins, grease points, and PTO fluid levels.

• Inspect frame welds for stress fractures.

Monthly:

• Verify hydraulic pressure and subframe torque.

• Clean oxidation and reseal paint where needed.

Quarterly:

• Drain compressor moisture traps.

• Grease all crane pivot points.

• Replace hydraulic filters and inspect fittings.

Regular intervals minimize emergency downtime — and keep your job site operations running profitably.

INVESTMENT VS. REPAIR COSTS

Smart spec’ing adds roughly 8–10% to your build cost but slashes long-term maintenance by 30%.

Example:
A $130K heavy-duty mechanic truck with $10K in reinforcements avoids:

• $12K frame replacement

• $5K downtime losses — twice over

• Operator disruptions that kill productivity

Every upgrade pays compounding dividends in uptime, safety, and operator confidence.

KEY TAKEAWAYS

• Steel outlasts aluminum under torque-heavy conditions.

• Reinforce subframes to prevent twisting under side load.

• Hydraulic outriggers are essential for job site safety.

• Right-size PTOs to prevent overheating and failure.

• Corrosion protection is not optional — it’s ROI.

A mechanic truck isn’t just equipment — it’s infrastructure.
Treat it as a profit engine, not a disposable tool.

Founding Member

FAQ Section

Q: What’s the ideal chassis class for a mechanic truck?
Class 5–7 trucks support cranes up to 14,000 lbs safely. Lighter chassis often experience frame flex and long-term fatigue.

Q: Which material performs best for long-term durability?
Galvanneal steel with e-coat finish resists corrosion up to 15 years, outperforming untreated aluminum on heavy job sites.

Q: How much does hydraulic outrigger installation add to cost?
Around $3,000–$4,500, but it prevents up to $12,000 in frame and downtime losses.

Q: How often should hydraulic systems be serviced?
Pressure testing every quarter and full fluid replacement annually or every 1,000 operating hours.

Q: What’s the most common upfit mistake?
Ordering cranes first and chassis second — always build from the frame up.
